tire & axle info
This page is intended to offer more-detailed specification information. It is not all-inclusive, so contact your rep if you don't find what you need.

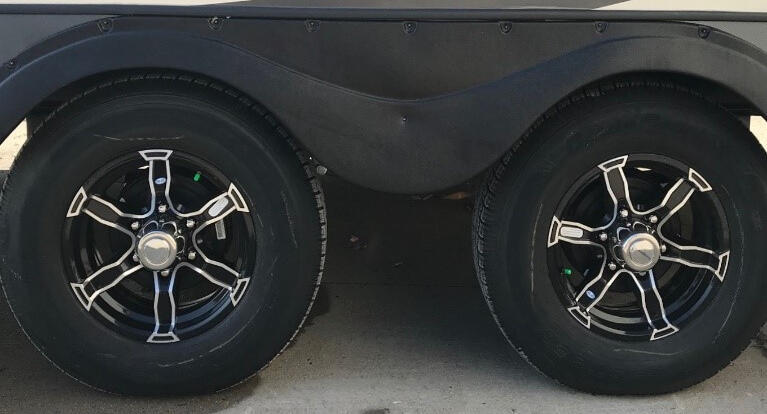

Tire & Axle sizes
by model (table)
Click the "MORE" button below to see the chart for Tire Sizes & Axle Sizes per model.
lionshead Tires (Goodyear Endurance)
Click "MORE" to access information on the Lionshead tire warranty, the owners pamphlet, and Warranty Claim Form.
Dexter Axles
Click "MORE" to access information on the Dexter Axle information pages, a flier on EZ Lube Bearings, and the Limited Warranty.
TIRE & AXLE SPEC's per model
Hyper lyte travel trailers
| Model | Axle Weights (lbs) | Tire Size | Tire Load Range | Ply |
|---|---|---|---|---|
| 19RBHL | 3,500 X 2 | 205/75R15 | D RATED | 8 |
| 22RBHL | 3,500 X 2 | 205/75R15 | D RATED | 8 |
| 22RKHL | 3.500 X 2 | 205/75R15 | D RATED | 8 |
| 23BHHL | 3,500 X 2 | 205/75R15 | D RATED | 8 |
| 24RDHL | 3,500 X 2 | 205/75R15 | D RATED | 8 |
| 25RBHL | 3,500 X 2 | 205/75R15 | D RATED | 8 |
| 26BHHL | 4,400 X 2 | 225/75R15 | E RATED | 10 |
| 27RKHL | 4,400 X 2 | 225/75R15 | E RATED | 10 |
| 29XBHL | 4,400 X 2 | 225/75R15 | E RATED | 10 |
Full Size Travel Trailers
| Model | Axle Weights (lbs) | Tire Size | Tire Load Range | Ply |
|---|---|---|---|---|
| 270FKS | 4,400 X 2 | 225/75R15 | D RATED | 10 |
| 271RL | 4,400 X 2 | 225/75R15 | E RATED | 10 |
| 273RL | 4,400 X 2 | 225/75R15 | E RATED | 10 |
| 308RL | 5,200 X 2 | 225/75R15 | E RATED | 10 |
| 310BHI | 5,200 X 2 | 225/75R15 | E RATED | 10 |
| 314BUD | 5,200 X 2 | 225/75R15 | E RATED | 10 |
| 322VIEW | 5,100 X 2 | 225/75R15 | E RATED | 10 |
Full Size Fifth Wheels
| Model | Axle Weights (lbs) | Tire Size | Tire Load Range | Ply |
|---|---|---|---|---|
| 286RL | 5,100 X 2 | 225/75R15 | E RATED | 10 |
| 320VIEW | 6,000 X 2 | 235/80R16 | E RATED | 10 |
| 325RL | 6,000 X 2 | 235/80R16 | E RATED | 10 |
| 353BED | 7,000 X 2 | 235/85R16 | E RATED | 10 |
| 356QB | 6,000 X 2 | 235/80R16 | E RATED | 10 |
| 369BL | 6,000 X 2 | 235/80R16 | E RATED | 10 |
| 375FAM | 7,000 X 2 | 255/80R16 | E RATED | 10 |
| 378FL | 6,000 X 2 | 235/80R16 | E RATED | 10 |
Elite Series Fifth Wheels
| Model | Axle Weights (lbs) | Tire Size | Tire Load Range | Ply |
|---|---|---|---|---|
| 35RE | 6,000 X 2 | 235/80R16 | E RATED | 10 |
| 36FL | 7,000 X 2 | 235/85R16 | E RATED | 10 |
Lionshead Tire Information
Lionshead Specialty Tire & Wheel provides a five (5) year warranty against manufactures defects on all of our radial ST (Specialty Trailer) tire brands. See Lionshead Product Warranty policy for details.If the consumer has any issue with their tire in the first twelve (12) months that is not covered by this warranty, Lionshead guarantees the replacement of that tire at no charge under our No Excuses Guarantee program.Benefits of the No Excuses Guarantee include replacement tire provided at no charge and shipped to the retail consumer at no cost. Lionshead will also provide a flat labor rate to assist in the cost of mounting the new tire.
Dexter Axle Information
From 2,000 lbs. to 8,000 lbs., Dexter leaf spring axles are the benchmark of the trailer industry. Each capacity is tested to meet the specific needs of each application... and then some.While straight spindles are considered standard for products rated above 9,000 lbs., Dexter offers both straight and 4” drop spindles for the D20. Suspension is accomplished through the use of both double eye and slipper spring Leaf Spring configurations, and can be mounted in either underslung and overslung configurations. In many cases Dexter has multiple tube and spindle solutions to safely handle the overhang customers desire. Leaf Spring axles are offered with several lubrication options, depending on the capacity, including E-Z Lube and standard grease.Dexter is committed to providing its customers with the most durable, highest level quality and performance leaf spring axle on the market.The buttons below will take you to the supplier's information pages for the various axle capacities, including a flier on the EZ Lube Bearing Lubrication System and the Limited Warranty.
